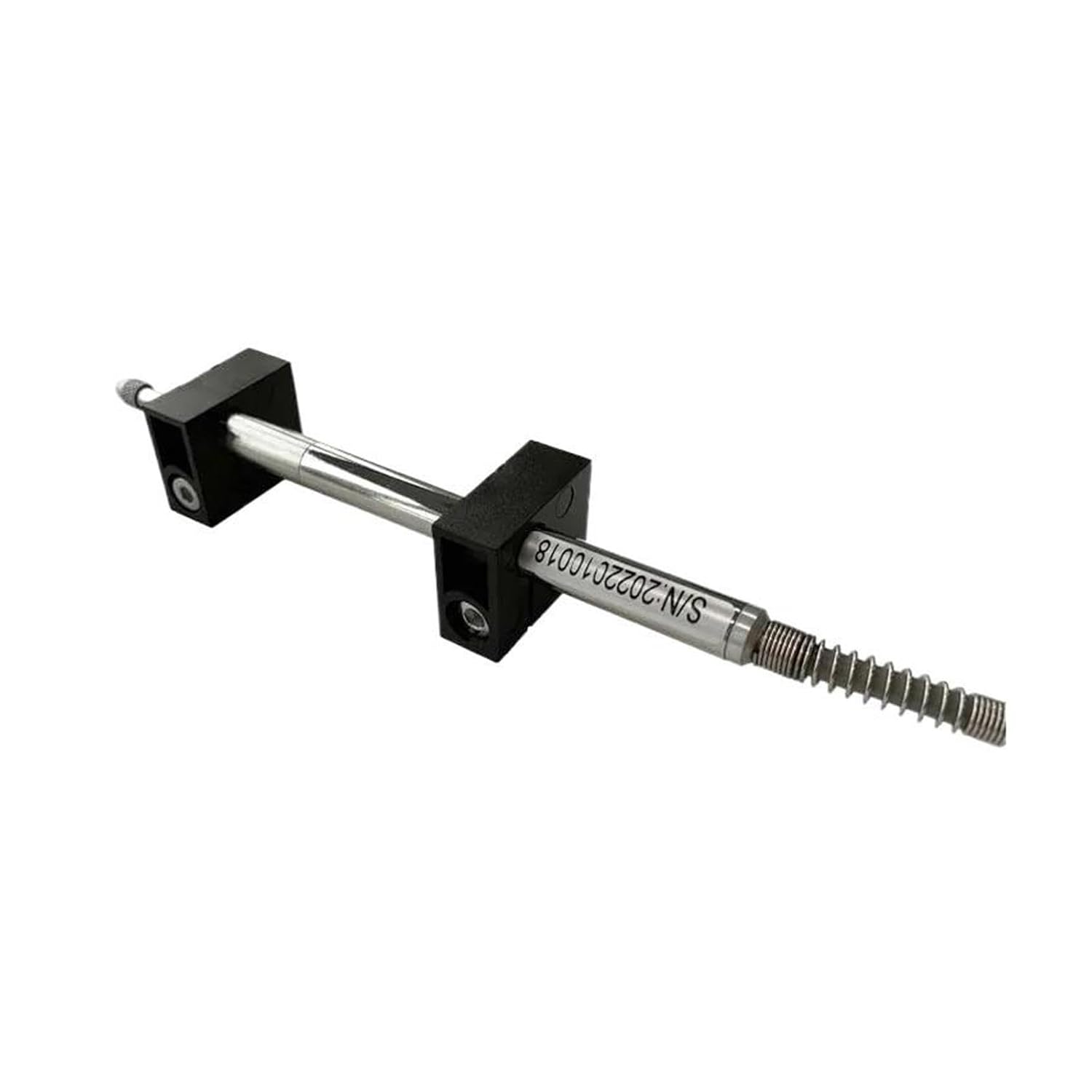

Lvdt8 Linear Displacement Sensor 2.5mm-10mm Small Stroke Easy Installation for Glass Thickness/Displacement Detection

Product Description OverviewDifferential transformer displacement sensor (LVDT) can be widely used in aerospace, machinery, construction, textile, railway, coal, metallurgy, plastics, industry and scientific research institutions and other national economy in all walks of life, used to measure elongation, vibration, object thickness, expansion and other high-tech products.LVDT8 pen displacement sensor has excellent performance, suitable for high precision, high repeatability measurement in quality control and metrology applications. The probe adopts wear-resistant material silicon nitride ceramic with high hardness, and the moving part of the measuring shaft adopts precision guide rail. The pen displacement sensor with transmitter can output standard DC signal, using convenient single power supply +12 ~ 30V DC power supply, electronic circuit sealed in 304 stainless steel metal tube, can work in damp and dust and other harsh environment. The output signal is standard 0-5V,0-10V, 4-20mA or RS485 output that can be used by a computer or PLC.Main FeatureOutside diameter 8mm pen type rebound displacement sensorThe probe is silicon nitride ceramic ball, wear resistanceMeasuring range from 0 to 10MM, high resolution, repeatabilityNo sliding contact, long service lifeAc signal power supply, equipped with high-performance signal modemTwo wires system 4-20mA current output, three wires system 0-5V or 0-10V voltage outputProduct ParameterMeasuring range2.5mm,5mm,10mmOutput signal4-20mAResolution0.1um(Highest)The digital output is16bitLinearity error±0.25%FSRepeat errorHighest up to 1umPower supply+12-30V DCWorking currentTwo wire 4-20mA current output current:4-25mADynamic characteristics10HzShock impact250g/11msVibration allowed limit10g/2KHZExcitation voltage3VrmsExcitation 5KHZTemperature coefficientZero 0.01%/Sensitivity0.025%/Operating temperature-25-+85ApplicationShaft diameter runout detection Textile machinery testingValve position detection and control Measurement of roll gapMeasurement of vehicle brake wear Robot, precision displacement measurementAuto parts online testingMachine tool and tool positioning, hydraulic cylinder positioningBridge deck shift detectionSubway tunnel engineering protectionModel GuidenceWire ConnectionThe output voltage of dc regulated power supply must be within the specified operating range1. Color definition of current signal output cable:Brown ---- Power supply (+) Current input (+)Blue ---- Power supply (-) Current output (-)2. Color definition of voltage signal output cable:Brown ---- Power supply (+)Blue ---- Voltage output (+)Black ---- Power supply (-) Signal output (-)3. Digital RS-485 signal output cable color definition:Brown -- Power supply power supply (+)Black -- Power supply power supply (-)Blue -- signal AWhite -- signal BThe positioning and installation of LVDT requires the use of non-metallic fixture with small temperature expansion coefficient for fixing, if the use of metal block fixture installation will affect the product performance.The company has standard fixture accessories for users to choose, users can also customize the installation fixture.Electronic : NoModel Number : LVDT linear displacement sensorDIY Supplies : ElectricalOrigin : Mainland ChinaOutput Voltage : Analog SensorItem : LVDT8Measurement Stroke : 2.5mm 5mm 10mmOutput Signal : Analog & RS485 OutputLinearity : 0.25%FS-0.1%FSSupply Voltage : DC12-30VRepeatability Precision : less than 0.001mmTemperature : -25 degree centigrate~+85 degree centigrateVibration : 10g/2KHZResolution analog output : less than 0.2umResolution RS485 output : 16bit
