A33 Drive V-Belt, 33" Inner Circumference

Product Name: FOCMKEAS V-Belt (Industrial Transmission Belt)Type: A ProfileModel: A33 or 4L350Inner Circumference: 33 inches (838mm)Cross-Section: Trapezoid (width 13mm, thickness 8mm)Material: Neoprene RubberColor: BlackPackage Specification: 1 Piece/PackWorking Temperature: -30℃~+80℃ (-22℉~176℉)Usage Instructions1、Size Confirmation: If there is no old belt, wrap a string around the pulley path, mark it, straighten and measure with a soft tape to ensure it matches the 22-inch inner circumference; if there is an old belt, directly measure its inner circumference.2、Installation Steps: First loosen the equipment's tensioning device (e.g., motor adjustment bolt), manually press the belt into the pulley groove to ensure it fits the groove wall completely, then retighten the tensioning device until the belt has no obvious slack.3、Maintenance Notes: Avoid the belt contacting engine oil, butter or gasoline to prevent corrosion; store in a cool place away from direct sunlight when not in use; regularly check belt tension, and replace in time if slipping, cracking or severe wear occurs; replace multiple belts of the same equipment at the same time to ensure consistent tension.Application√ Industrial Equipment: Pumps, fans, air compressors, generators, crushers, rolling mills, wet grinders;√ Agricultural Machinery: Tractors, harvesters, seeders, irrigation equipment;Woodworking Machinery: Lathes, drill presses, table saws, sanders;√ Automotive & Home Appliances: Some on-board auxiliary equipment, large washing machines, dryers;√ Other Scenarios: A-profile V-belt replacement for old industrial machinery and small generators.

• Size：A profile V belt model A33, inner length 33 inch (838mm), top width: 0.51 inch/13mm; thickness: 0.31 inch/8mm, compliant with Japanese JIS K 6323 standard; before purchasing, please confirm that the pulley path circumference is 33 inches

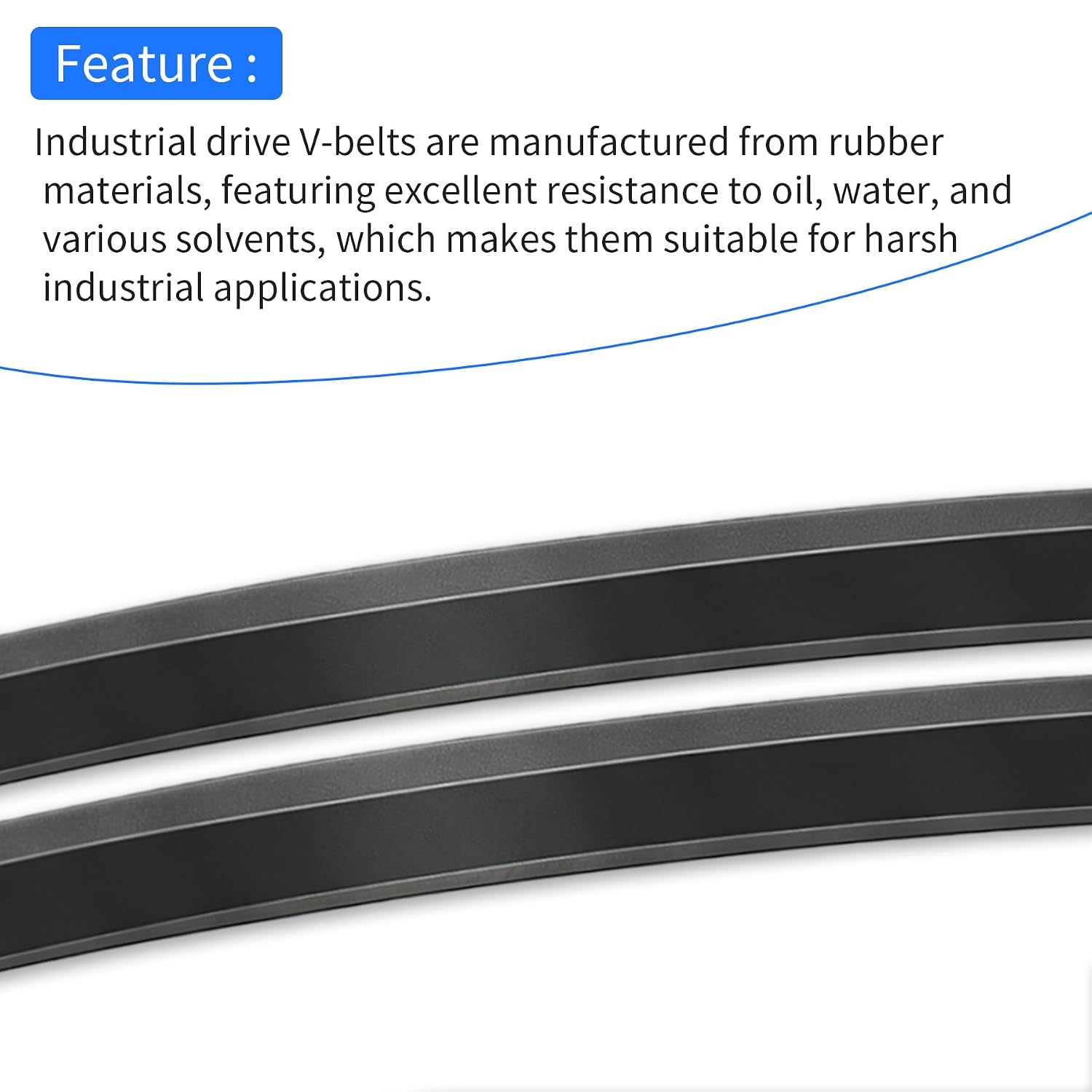

• Material：The V-belt made of premium neoprene rubber, featuring excellent oil resistance, wear & heat resistance, working temperature -30℃~+80℃ (-22℉~176℉), while Its low elongation ensures long-lasting, efficient power transmission for our drive system
• Function：The core function of rubber V belt is connect 2 or more rotating shafts for stable power transmission, with even load distribution, High friction coefficient of rubber belt bring higher transmission friction to ensures no slipping during operation
• Trapezoidal Design: Trapezoidal cross-section of transmission V-belt easy to install quickly,fits tightly into pulley grooves, forming a stable "wedge bite" to precise alignment and provide sufficient traction
• Applications：Heavy-Duty rubber drive belt can be used to high speed transmission of drive parts in pumps, compressors, generators, drive parts for lathes, drill presses, table saws, tractors, harvesters, etc. widely used in industrial, agricultural field and automotive systems
